XJF800 LED Epi-fluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with no magnification sphero-chromatic aberration infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear picture and wide view field. The transmitted and epi-fluorescent illumination light source are high power & brightness LED, but power consumption is lower and use life longer, very good radiating heat effect. Safely and comfortably using the instrument, the cost of use and maintenance are lower. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.
Category: Fluorescence Microscope
Model: XJF800
Magnification: 40X--1000X
Transmitted light: 3W high brightness white LED, Brightness adjustable
Reflected light: 5W high brightness LED Brightness adjustable

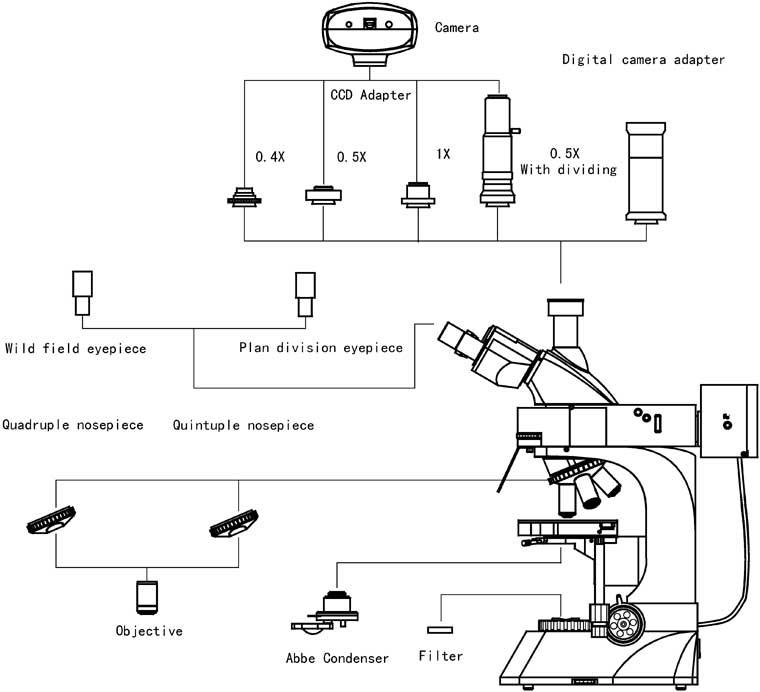

Specification | XJF800 |
Optical System | Infinity Optical System F=200mm | ● |
Viewing Head | Seidentopf Trinocular Head, 30°inclined (55-75mm) 360° rotatable, diopter adjustable. | ● |
Eyepiece | WF10X/22mm | ● |
WF10X/22mm with reticule, 0.10mm/Divide | ○ |
Nosepiece | Quadruple | ● |
Quintuple | ○ |
Objective | Plan Achromatic Objective 4X/0.10 WD=19.8mm | ● |
Plan Achromatic Objective 10X/0.25 WD=5.0mm | ● |
Plan Achromatic Objective 40X/0.85 WD=0.42mm | ● |
Plan Achromatic Objective 100X/1.25 WD=0.36mm | ● |
Plan Achromatic Objective 60X/0.80 WD=0.46mm | ○ |
Plan Achromatic Fluorescent Objective 10X/0.35 WD=2.37mm | ○ |
Stage | Double layers mechanical stage Stage size: 210mm × 140mm Moving range: 75mm × 50mm | ● |
Filter | Blue | ● |
Frosted glass | ● |
Green | ○ |
Yellow | ○ |
Condenser | Abbe condenser NA.1.25 Rack & pinion adjustable | ● |
Focus System | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. | ● |
Epi-fluorescent Unit | 5W high brightness LED Enable selecting monochromatic or biochromatic LED for light source | ● |
B Excitation LED Filter (410nm~490nm) | ● |
G Excitation LED Filter (475nm~550nm) | ● |
UV Excitation LED Filter (320nm~380nm) | ○ |
V Excitation LED Filter (380nm~415nm) | ○ |
Transmitted Illumination | Collector for LED illumination and integrated field diaphragm | ● |
3W high brightness white LED，adjustable brightness | ● |
C-Mount | 0.5X C-Mount | ● |
1X C-Mount | ○ |
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Pack: 1 carton, G.W.: 15.6KGS, Meas.49.5*65*35CM
