XJM200

Ergonomic observation mode, comfortable operation in low hand position, to meet customers' long-term use. All die-casting metal materials, firm and stable, excellent quality assurance

1． Introduction

XJM200 Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.

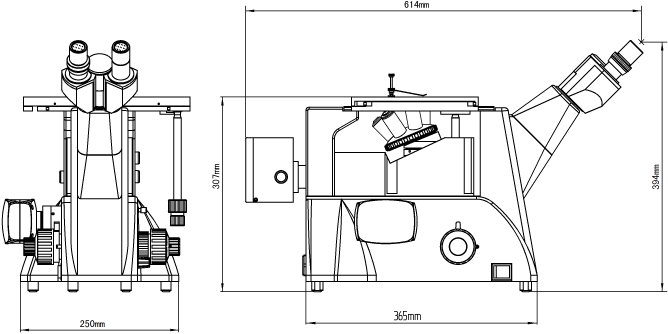

2． Structure


3． Image


Parts	Specifications	XJM200	XJM200BD
Optical System	Infinite Plan Optical System F=200mm	●	●
Viewing Head	Siedentopf trinocular head, interpupillary distance 53~75mm, 45° inclined, diopter adjustable.	●	●
Eyepiece	WF10X/22mm, High eye-point up to 21mm.	●●	●
Eyepiece	WF10X/22mm with reticule	○
Polarization	Simply Polarizer and Analyzer	●	●
Nosepiece	Quintuple, Inward facing.	●	●
Objectives	Long working distance Plan Achromatic 5X/0.10 WD=26.1mm	○
	Long working distance Plan Achromatic 10X/0.25 WD=5mm or 10X/0.25 WD=20.2mm	●
	Long working distance Plan Achromatic 20X/0.25 WD=8.80mm	●
	Long working distance Plan Achromatic 40X/0.10 WD=3.68mm	○
	Long working distance Plan Achromatic 50X/0.40 WD=3.68mm	●
	Long working distance Plan Achromatic 60X/0.10 WD=3.18mm	○
	Long working distance Plan Achromatic 80X/0.10 WD=1.28mm	○
	Long working distance Plan Achromatic 100X/0.85(Dry) WD=0.40mm	●
	Long working distance Plan Achromatic BD5X/0.12 WD=8.050mm		●
	Long working distance Plan Achromatic BD10X/0.25 WD=7.86mm		●
	Long working distance Plan Achromatic BD20X/0.40 WD=7.23mm		●
	Long working distance Plan Achromatic BD50X/0.70 WD=1.75mm		●
	Long working distance Plan Achromatic BD40X/0.60 WD=3.00mm		○
	Long working distance Plan Achromatic BD60X/0.70 WD=1.90mm		○
	Long working distance Plan Achromatic BD80X/0.80 WD=0.80mm		○
	Long working distance Plan Achromatic BD100X/0.85 WD=0.22mm		○
Stage	Fixed stage: 242×200mm, low-position co-axial flexible adjusting handle, moving range:30×30mm	●	●
Filter	Blue filter (Φ26)	●	●
	Green filter (Φ26)	●	●
	Yellow filter (Φ26)	●	●
Illumination	6V 30W halogen lamp	●
Illumination	12V 50W halogen lamp		●
C-Mount	1X	○	○
C-Mount	0.5X	○	○
Digital Camera Joint	(Please advice your digital camera model in advance)	○	○
Optional	Material analysis soft	○
Weight / Volume	1 carton, G.W.: 20kgs, Meas.:496136cm
